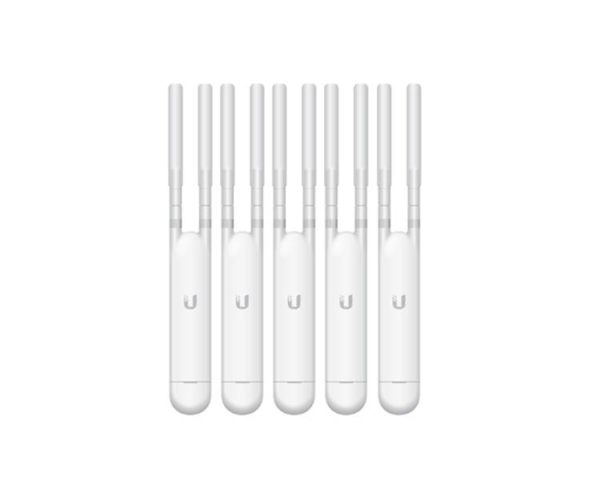

The UniFi AC Mesh AP provides simultaneous, dual-band, 2×2 MIMO technology and is available in single- and five-packs.

Warning – Power over Ethernet not included in 5-packs

Compact Form Factor: The UniFi AC Mesh AP discreetly integrates into any environment.

Weather-Resistant Enclosure: The UniFi AC Mesh AP can be used indoors or outdoors.

Versatile Mounting: The UniFi AC Mesh AP can be mounted on a wall, pole, or fast-mount of a Ubiquiti high-gain antenna. (All accessories are included.)

Multiple Power Options: The UniFi AC Mesh AP is compatible with 802.3af PoE Alternative A and 24V passive PoE. You can power it with an 802.3af Alternative A compatible switch, EdgePoint EP-R6, UniFi PoE Switch, or the included Gigabit PoE adapter.

Antenna Options: Use the included omni antennas, or use the included fast-mount adapter to install the AP on an optional connectorized antenna for expanded range coverage and customized pattern shaping.

Product Specifications

LAN ports: 1
Speed of LAN: (1) 10/100/1000Mbps
Gigabit LAN: Yes

Purpose: Outdoor
Buttons: Reset
Operating temperature [C]: -30 up to 70
Weight [g]: 152
Depth [mm]: 34
Width [mm]: 46
Height [mm]: 353

Max. power consumption [W]: 8,5
Power over Ethernet: 802.3af, 24V DC, 44 .. 57V DC
PoE type: Input

Tx power 2.4GHz [dBm]: 20
Tx power 5GHz [dBm]: 20
Wireless frequency [GHz]: 2.4 + 5 (dual band)
Transmission speed – WiFi 2.4GHz [Mb/s]: 300
Transmission speed – WiFi 5GHz [Mb/s]: 867
WiFi standards: 802.11ac, 802.11n, 802.11a, 802.11b/g
Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
Type of antenna: Detachable
Detachable antennas: 2
Roaming: Yes
Antenna gain [dBi]: 4
